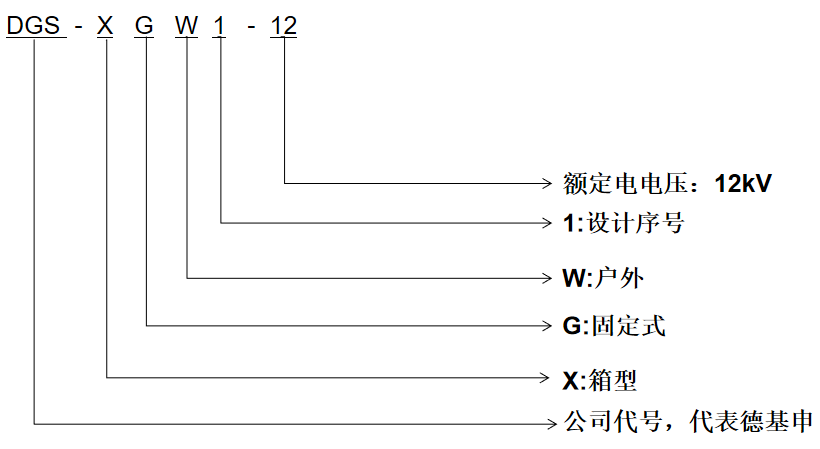

The DGS-XGW1-12 prefabricated metal enclosed ring net cage is a movable, sealed, and moisture-proof stainless steel box that installs and debugs 12kV switchgear, power supply PT cabinet, automation station terminal DTU, communication control terminal, UPS power supply, etc. It is suitable for distribution automation, compact and expandable distribution equipment, and has the advantages of oil-free, multi combination, maintenance free, modular, corrosion-resistant, high reliability, and strong environmental adaptability. The incoming and outgoing circuit can meet both manual and electric operation requirements according to user requirements. The circuit breaker circuit achieves different degrees of control, measurement, and protection functions through intelligent controllers and other related equipment. The equipment combination is flexible, and users can configure optional components in stages according to different investment stages, with strong upgrade capabilities and investment savings. Widely used in power distribution scenarios of load centers such as urban residential communities, high-rise buildings, large public buildings, factories, and enterprises.

Execution standards
GB/T3804 3.6kV~40.5kV High Voltage AC Load Switches
GB/T1984     High voltage AC circuit breaker
GB/T1985     High voltage AC isolation switch and grounding switch
GB/T3906 3.6kV~40.5kV AC metal enclosed switchgear and control equipment
GB/T11022    Common technical requirements for high voltage switchgear and control equipment standards
GB/T4208     Protection level of shell (IP code)
DL/T404 3.6kV~40.5kV AC metal enclosed switchgear and control equipment
GB/T311.1    Insulation Coordination Part 1: Definitions, Principles, and Rules

Usage conditions
Surrounding air temperature: -40 ℃ to+60 ℃;
Altitude: not exceeding 1000m; (If it exceeds 1000m, it shall be determined through consultation between the user and the manufacturer)
Humidity:
Relative humidity: The average daily relative humidity should not exceed 95%, and the average monthly relative humidity should not exceed 90%;
Seismic intensity: not exceeding 8 degrees;
The surrounding air is not significantly polluted by dust, smoke, corrosive and/or flammable gases, vapors, or salt spray.
When the usage conditions of the switchgear exceed the above regulations, it shall be determined through consultation between the user and the manufacturer.

Main technical parameters

Serial Number	Name		Unit	Numerical Value
1	rated voltage		kV	12
2	rated current		A	630
3	rated frequency		Hz	50
4	Rated short-time power frequency withstand voltage	Alternating and relative to each other	kV	42
		Fracture and isolation switch fracture		48
5	rated lightning impulse withstand voltage	Alternating and relative to each other	kV	95
		Fracture and isolation switch fracture		110
6	Rated short-time withstand current		kA	20
7	Rated short-time endurance time		s	4
8	Rated peak withstand current		kA	50
9	Rated short-circuit closing current (peak)		kA	50

Product Technical Features

The box is assembled with sealed, moisture-proof, and rust proof materials, which have high mechanical strength and strong corrosion resistance. There are no fasteners on the surface that can be disassembled, and it has good anti-theft performance. It has an IP43 protection level and strong rainproof performance;

The top cover of the box is designed as an air sandwich double-layer structure, with a drainage angle on the outer layer and ventilation openings; The air inlet is located at the bottom and sides of the box, and is equipped with a detachable dust filter screen; A bottom-up air convection is formed inside the box, which provides good insulation and ventilation effects;

The box has a sealed floor with cable inlet to prevent moisture from entering the cable trench; The contact area between the door and the box is sealed with sealing strips, and after opening, it has a windproof device, which facilitates the fixation of the door during operation. The door lock has a rainproof structural design.

The switch equipment inside the box has been installed and tested properly before leaving the factory. After transportation to the site, the box only needs to be lifted to the required position, which is simple to install and occupies a small area.

Electrical equipment adopts imported or domestically produced high-quality products; The back of the switch chamber is equipped with an explosion-proof valve. When the internal arc pressure is too high, the gas is discharged through the explosion-proof valve to ensure the safety of operators, cables, and other equipment;

Modular design, can be freely combined, with convenient and flexible configuration of DTUs for incoming and outgoing lines, achieving intelligent control.
